What is Miniature Circuit Breaker (MCB)?
An MCB, or Miniature Circuit Breaker, is a critical component in the protection of electrical circuits. It is designed to interrupt the flow of current when it detects an overload, short circuit, or ground fault. MCBs are compact, easy to install, and find widespread use in residential, commercial, and light industrial applications. They come in various sizes and ratings to meet different electrical protection needs.
Typically, MCBs are found in homes, offices, and smaller buildings. They prevent damage to electrical equipment by disconnecting the power supply whenever a fault occurs. MCBs are known for their reliability and ease of installation, making them a preferred choice for many low-power applications.
What is Molded Case Circuit Breaker (MCCB)?
An MCCB, or Molded Case Circuit Breaker, serves a similar purpose but is built to handle higher current ratings, often used in industrial and commercial settings. MCCBs are designed to protect electrical systems from overloading, short-circuiting, and ground faults, just like MCBs, but with greater capacity and additional features.
MCCBs come in various sizes and are known for their durability and ability to withstand harsh conditions. They can be thermal-magnetic, electronic, or microprocessor-based, offering flexibility and advanced protection. Commonly used in factories, data centers, and large commercial buildings, MCCBs provide both protection and additional benefits such as system monitoring and control.

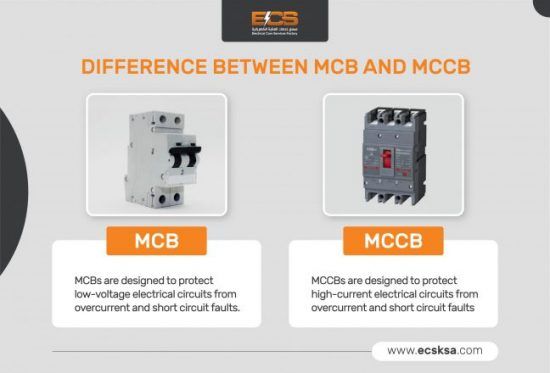

Differences Between MCB and MCCB
While MCBs and MCCBs share common goals, several key differences set them apart:
- Current Rating: MCBs typically handle up to 63 Amps, while MCCBs can manage up to 2,500 Amps or more.
- Size and Weight: MCBs are smaller and lighter, ideal for low-power applications. MCCBs are bulkier but necessary for higher power needs.
- Trip Mechanism: MCBs use a simple thermal-magnetic trip mechanism, while MCCBs can use a variety of trip mechanisms, including thermal-magnetic, electronic, and microprocessor-based.
- Application: MCBs are suitable for residential, commercial, and light industrial applications, while MCCBs are designed for heavy-duty industrial and commercial applications.
- Price: MCBs are generally less expensive due to their simpler design. MCCBs are costlier but offer more advanced features.
- Monitoring and Control: Some MCCBs include monitoring and control capabilities, providing valuable data on system performance and maintenance.
Similarities Between MCB and MCCB
Here are some similarities between MCBs and MCCBs:
- Purpose: Both protect electrical circuits from overloading, short-circuiting, and grounding faults.
- Functionality: They operate by interrupting the flow of current when a fault is detected.
- Standards: Both MCBs and MCCBs are designed to meet international safety standards and are tested to ensure they meet these standards.
- Installation: Both can be easily installed into electrical panels and distribution boards.
How to Select MCB or MCCB At Different Circuit Levels
Choosing between an MCB and an MCCB depends on the specific requirements of your circuit:
- Low-power circuits: MCBs are typically sufficient. They are small, easy to install, and handle lower current levels effectively.
- Medium-power circuits: MCCBs may be needed. They provide higher current handling and advanced protection features.
- High-power circuits: MCCBs are the preferred choice. They manage high current levels and offer features like adjustable trip settings and enhanced protection.
It is important to select a circuit breaker rated for the maximum current expected in the circuit. Overloading a circuit breaker can cause it to trip frequently, reducing its effectiveness as a protective device.
Conclusion
MCBs and MCCBs are essential components in electrical systems, providing protection against faults and malfunctioning equipment. While MCBs are simpler and more cost-effective, MCCBs offer advanced features like monitoring and control capabilities. It is important to select the right type of circuit breaker based on the specific requirements of the circuit being protected. With proper installation and selection, MCBs and MCCBs can effectively safeguard electrical systems and prevent potential hazards. So, it is crucial to choose wisely based on your system’s needs to ensure its safety and optimal performance.
Discover the right circuit breaker choice for your electrical system with ECSKSA’s expert guide. Explore the differences between MCB and MCCB and make an informed decision. Contact us today to learn more!
FAQs
1. What are MCBs and MCCBs used for?
MCBs and MCCBs are used to protect electrical circuits from overloading, short-circuiting, and grounding faults. They play an important role in ensuring the safety and reliability of electrical systems by automatically disconnecting the power supply when a fault occurs.
2. Can an MCB be used instead of an MCCB?
It depends on the current level of the circuit. MCBs are designed for low-power circuits, while MCCBs are designed for medium to high-power circuits with higher current levels. If the circuit current level is within the range of an MCB, it can be used, but if the circuit current level is higher, an MCCB should be used.
3. How does an MCB work to protect an electrical circuit?
An MCB constantly monitors the current in an electrical circuit. If the current exceeds a pre-set value, the MCB’s trip mechanism opens the circuit, interrupting the current flow and protecting the system from damage due to overload, short-circuit, or ground fault. MCBs are sensitive and responsive, providing fast and reliable protection.
