Switchboards
A switchboard is an assembly of electrical equipment that receives power from one or more sources and distributes it to different loads within a building. The components of a switchboard include circuit breakers, switches, fuses, meters, and transformers.
Switchboards are used in commercial and industrial buildings and can handle high voltage and amperage loads. They can also control power distribution from multiple sources, such as a utility or a generator. There are different types of switchboards, including main-tie-main switchboards, double-ended switchboards, and single-ended switchboards.
- Main-tie-main switchboards are used when a building has multiple power sources. They allow power transfer between sources without interrupting power to the building’s loads.
- Double-ended switchboards have two incoming power sources and can be used for redundancy or to supply power to critical loads.
- Single-ended switchboards have one incoming power source and are used for smaller buildings or less critical applications.
Switchboards work by receiving power from the utility or generator and distributing it to the different circuits within the building. The circuit breakers and fuses protect the circuits from overloads and short circuits. The switches and meters allow for control and monitoring of the power distribution.

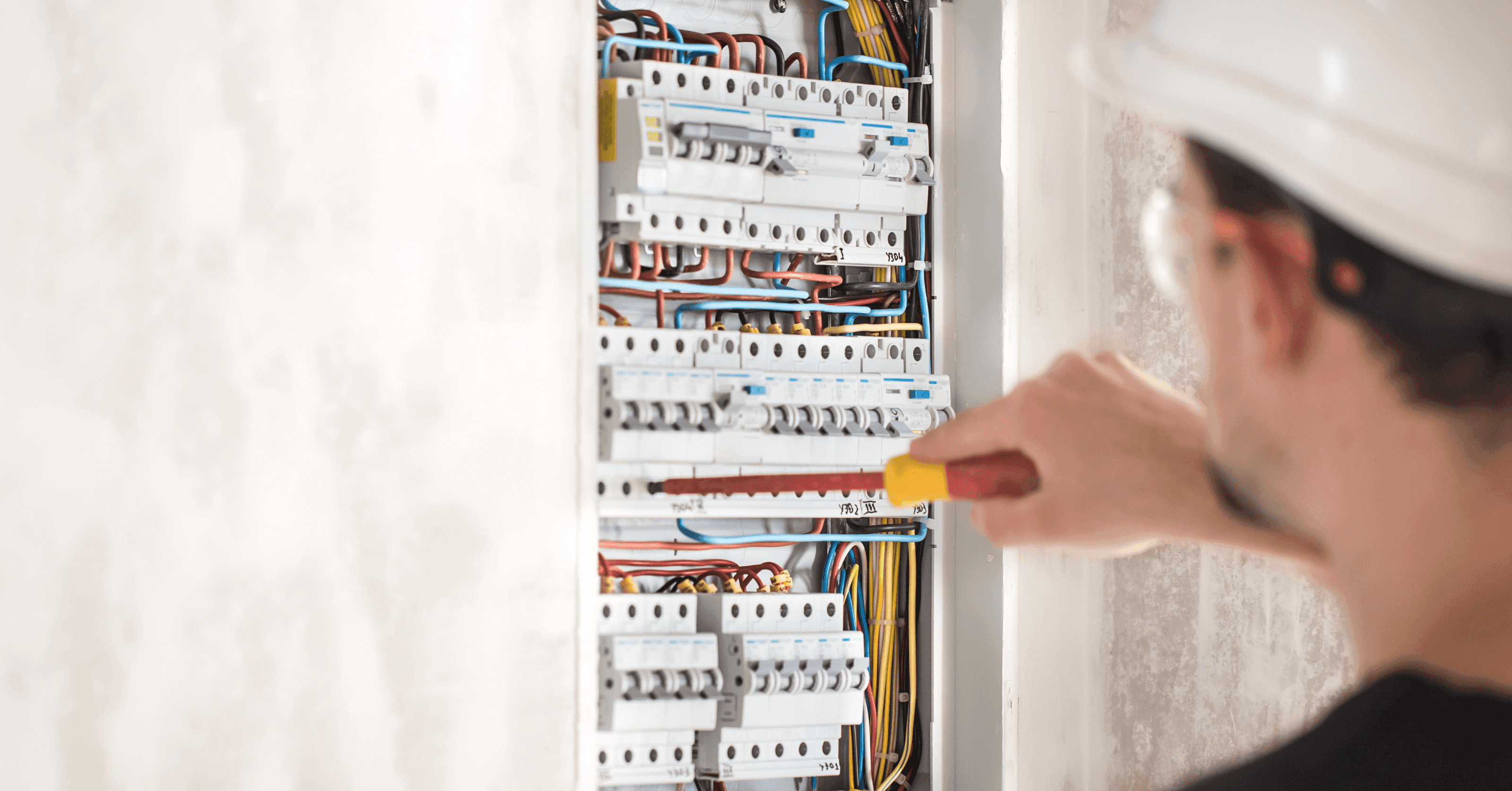

Panelboards
A panelboard is a distribution board that houses one or more circuit breakers or fuses. The panelboard receives power from a switchboard or other source and distributes it to individual circuits within the building.
Panelboards in residential and small commercial buildings can handle low to medium voltage and amperage loads. They control power distribution to specific building areas, such as lighting, HVAC, or appliances. There are different types of panelboards, including lighting panelboards, power panelboards, and combination panelboards.
- Lighting panelboards are used to control power distribution to lighting circuits.
- Power panelboards are used to control power distribution to power circuits.
- Combination panelboards are used to control power distribution to both lighting and power circuits.
Panelboards receive power from a switchboard or other source and distribute it to the different circuits within the building. The circuit breakers and fuses protect the circuits from overloads and short circuits. The switches and meters allow for control and monitoring of the power distribution.
Differences Between Switchboards and Panelboards
Switchboards and panelboards are both electrical distribution systems used to control and distribute power to various electrical loads in a building or facility. However, there are some key differences between the two.
- Function: A switchboard is primarily used to control and distribute power to large electrical loads such as motors, transformers, and other heavy machinery. On the other hand, a panelboard is used to distribute power to smaller loads such as lighting, appliances, and other low-voltage devices.
- Capacity: Switchboards are designed to handle higher voltage and current loads, typically ranging from 600 volts up to 15,000 volts or more, and can handle current capacities of up to 10,000 amperes or more. Panelboards, on the other hand, are designed to handle lower voltage and current loads, typically ranging from 120 volts to 480 volts, and current capacities of up to 1200 amperes.
- Components: A switchboard typically consists of a main switch, feeder breakers, and busbars to distribute power to various loads. A panelboard, on the other hand, typically consists of a main circuit breaker, branch circuit breakers, and a distribution panel.
- Application: Switchboards are typically used in industrial and commercial settings where high-voltage and high-current loads are present, such as factories, large commercial buildings, and power plants. Panelboards, on the other hand, are typically used in residential, commercial, and small industrial settings, such as homes, small offices, retail stores, and schools.
- Installation Location: Switchboards are typically installed in a dedicated electrical room or vault, which requires a larger amount of space and a more complex installation process. In contrast, panelboards are installed in utility rooms or electrical closets, which can be located throughout the building for more convenient access.
Overall, the main difference between switchboards and panelboards is the size and capacity of the loads they are designed to handle. Switchboards are larger and more powerful, while panelboards are smaller and designed for lower voltage and current loads.
Installation and Maintenance of Switchboards and Panelboards
Proper installation and maintenance of switchboards and panelboards are essential for ensuring their safety and functionality. Installation requirements include proper grounding, adequate clearances, and compliance with local codes and regulations. A qualified electrician should install it to ensure it is done correctly and safely.
Regular maintenance is necessary to keep switchboards and panelboards in good working condition. Maintenance activities include cleaning, tightening connections, checking circuit breakers and fuses, and inspecting for signs of wear or damage. It’s essential to follow the manufacturer’s maintenance recommendations and schedule to ensure the equipment remains safe and reliable.
Common Mistakes to Avoid
There are several common mistakes that people make when working with switchboards and panelboards. These mistakes can lead to electrical hazards, equipment damage, and even fires. Some common mistakes to avoid include the following:
- Overloading circuits: Overloading circuits can cause the circuit breakers to trip or fuses to blow, potentially damaging equipment or causing a fire.
- Mixing incompatible components: It’s essential to use features designed to work together to ensure proper functionality and safety.
- Improper grounding: Proper grounding prevents electrical shocks and equipment damage.
- Neglecting maintenance: Neglecting maintenance can lead to equipment failure and potentially hazardous conditions.
- Working with live wires: Working with live wires can be dangerous and should only be done by qualified professionals.
Choosing the Right Switchboard or Panelboard
Choosing the right switchboard or panelboard depends on several factors, including the type of building, the size and complexity of the electrical system, and the specific power requirements. It’s essential to work with a qualified electrical contractor or engineer to determine the appropriate equipment for the application.
When selecting a switchboard or panelboard, it’s essential to consider the maximum voltage and amperage that it can handle, the number of circuits needed, and any special features required, such as backup power or remote monitoring capabilities. The equipment should also be compatible with the other electrical system components and meet all relevant safety standards.
Wrap Up
Switchboards and panelboards are critical components of electrical distribution systems that enable us to use electricity safely and efficiently. Understanding the basics of switchboards and panelboards, their features, how they work, and their applications, is essential for ensuring that electrical systems operate safely and reliably. By following proper installation, maintenance, and safety practices, we can ensure that switchboards and panelboards continue providing safe and reliable power distribution for years.
